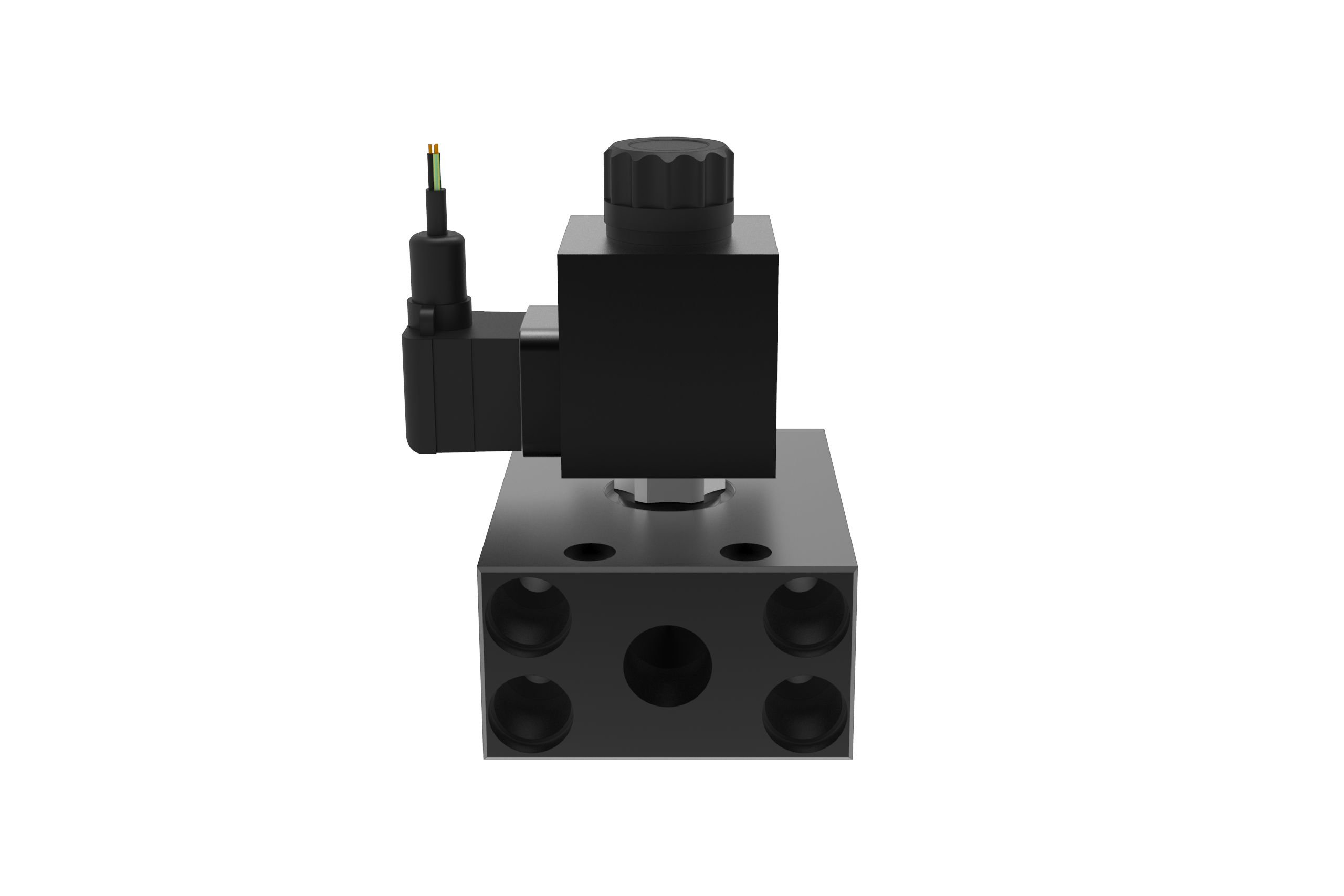

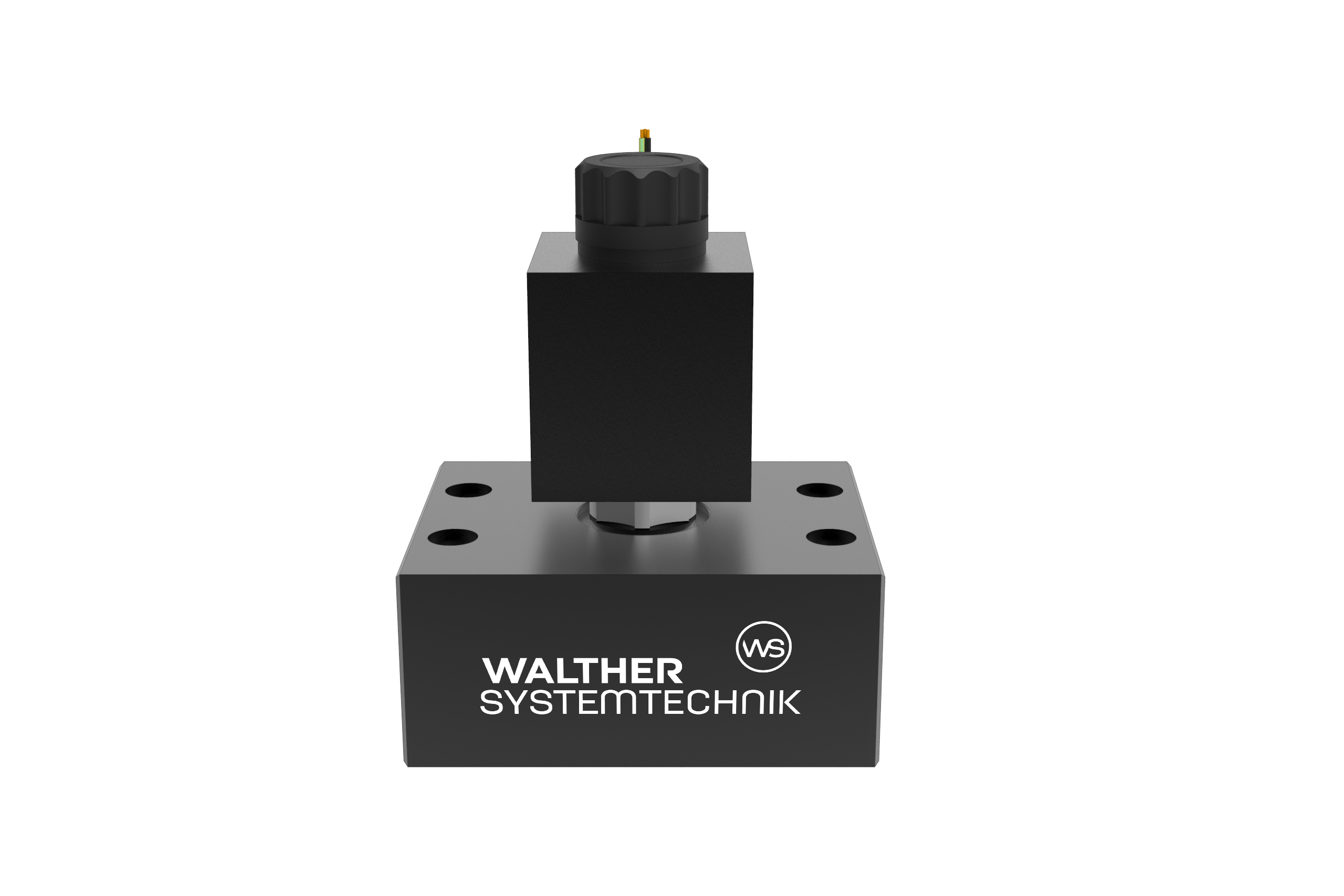

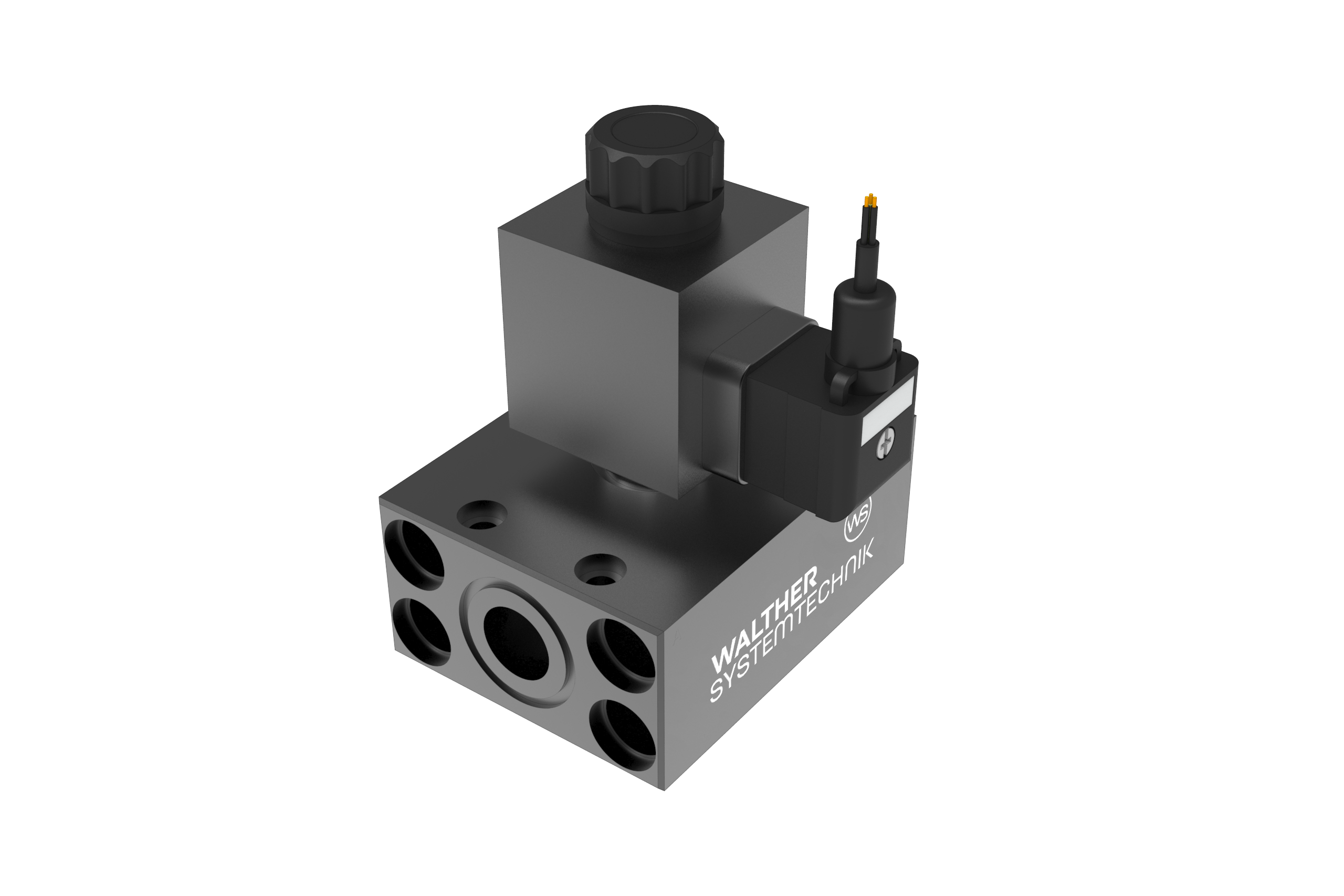

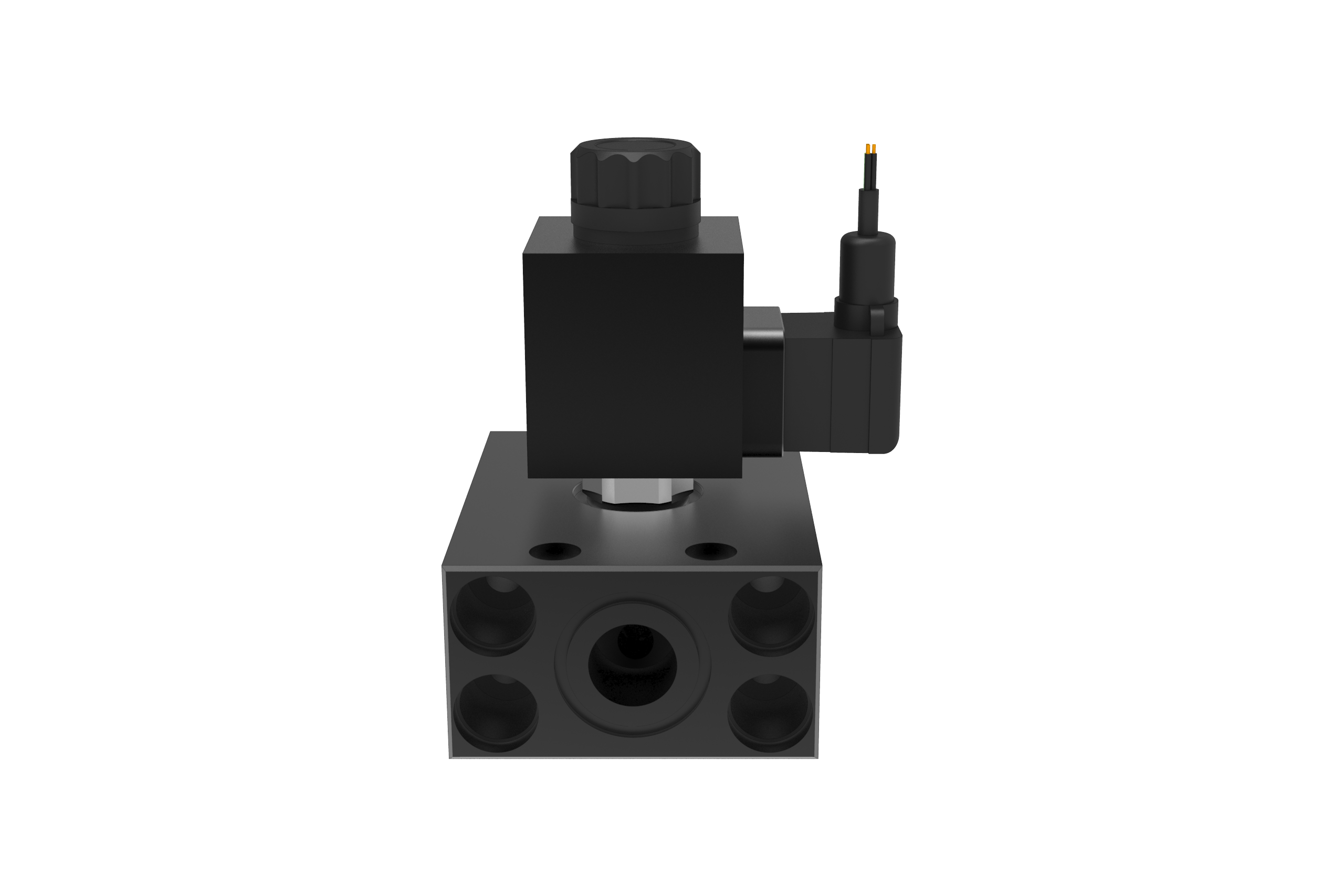

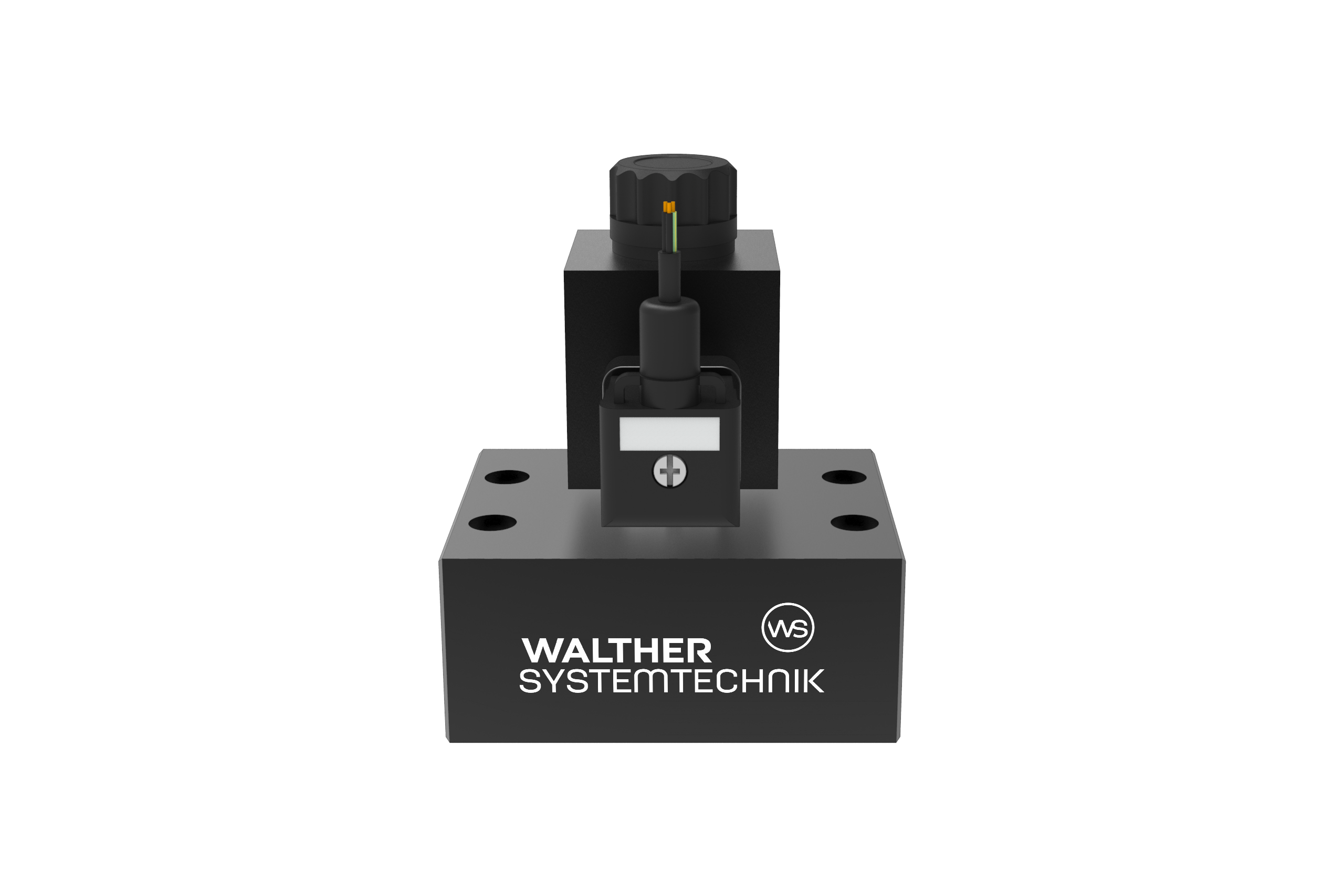

Medium Switch (2/2-Way Stop Valve) WGV-22
The WGV-22 is a compact stop valve with an excellent performance thanks to its optimum design and an electro-mechanical valve actuator. When integrated into your line system, you can open and close the flow with the WGV-22 and will allow/not allow your medium to flow.
The WGV-22 comes with a medium outlet and two switching points. In normal mode, it is spring-reset open or closed. The valve is electrically controlled and does not need compressed air for controlling, in contrast to ball valves with a pneumatic drive; therefore, it does not need much space and can be easily integrated into existing systems.
The electric control allows fast switching times and high switching frequencies. The WGV-2/2 is suitable for low to highly viscous media as well as for pressures up to 200 bar. It has optimum flow values, is robust, low in wear and can be used for medium temperatures from 4 to 55 °C.
As a module of the Modular Series, the Stop Valve has a compact design, can be easily installed and can be integrated in any dosing and application system. Above that, flanging it to other modules of the series is fast and easy.
- valves available for many applications (3/2, 2/2 NO / NC)
- compact design compared to electro-pneumatic ball valves
- fast switching times (< 50 [ms]) and switch frequencies possible
- low-wear operation, particularly compared to ball valves
- operating pressure: max. 200 [bar]
- dimensions (l x w x h) (version 2/2): 102 x 79 x 125 [mm]
- dimensions (l x w x h) (version 3/2): 102 x 79 x 143 [mm]
- weight (version 2/2): 1,2 [kg]
- weight (version 3/2): 1,5 [kg]
- Walther module length: 2 [TE]
- connection: G1/2"i and flange Walther-Modular
