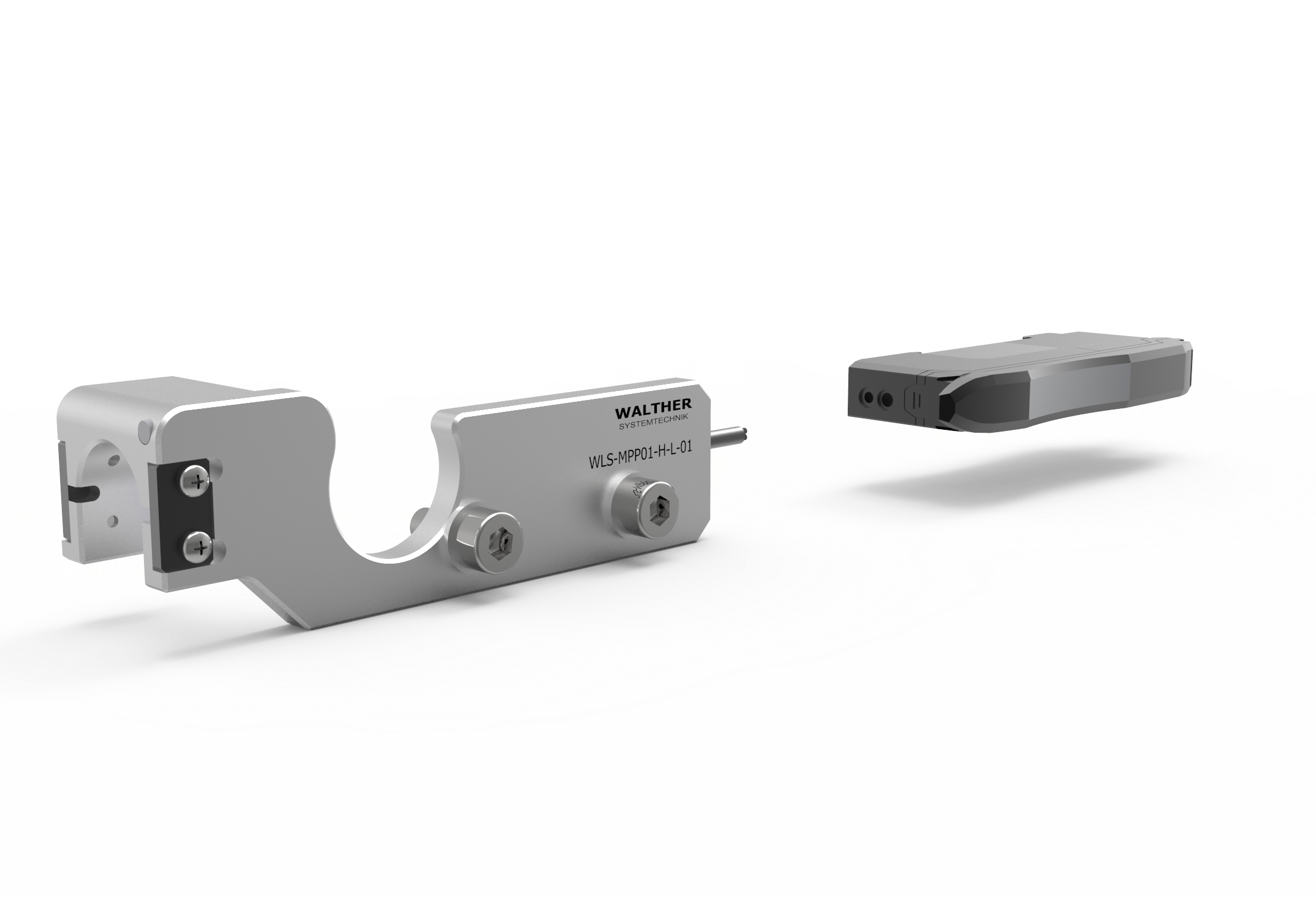

Light Barrier WLS
Our WLS light barriers are the ideal solution for enhancing process security in pulsating media applications. These light barriers can be mounted on MPP pulse valves and reliably detect the departure of a media point at the nozzle exit. An evaluation device provides a precise control signal upon successful media discharge.
With the capability to handle pulse frequencies of up to 300 Hz, our WLS light barriers enable the detection of even the smallest amounts of media as they exit the valve nozzle. The straightforward and intuitive installation and commissioning make these light barriers exceptionally user-friendly.
The pollution compensation ensures reliable functionality even under challenging conditions. The various models offer flexible options to meet different requirements.
Rely on the precision and reliability of our WLS light barriers for efficient control of your pulsating media applications.
- suitable for pulse frequencies up to 300 [Hz]
- detection of smallest medium quantities when leaving the valve nozzle
- easy and intuitive installation and start of operation
- contamination compensation
- dimensions (l x w x h) (WLS-MPP03-V-LR-01): 91,5 x 35 x 20 [mm]
- dimensions (l x w x h) (WLS-MPP03-H-LR-01): 91,5 x 35 x 25 [mm]
- dimensions (l x w x h) (WLS-MPP01-H-L-01): 94 x 30,5 x 25 [mm]
- dimensions (l x w x h) (WLS-MPP01-V-L-01): 94 x 28,5 x 20 [mm]
- dimensions (l x w x h) (WLS-MPP01-H-R-01): 94 x 30,5 x 25 [mm]
- dimensions (l x w x h) (WLS-MPP01-V-R-01): 94 x 28,5 x 20 [mm]
- weight (WLS-MPP03-V-LR-01): 0,036 [kg]
- weight (WLS-MPP03-H-LR-01): 0,038 [kg]
- weight (WLS-MPP01-H-L-01): 0,036 [kg]
- weight (WLS-MPP01-V-L-01): 0,034 [kg]
- weight (WLS-MPP01-H-R-01): 0,036 [kg]
- weight (WLS-MPP01-V-R-01): 0,034 [kg]
